在现代电力系统中,母线槽和配电柜是两个至关重要的组成部分,它们之间的连接方式直接关系到电力传输的效率和安全性。In modern power systems, bus ducts and power distribution cabinets are two crucial components. The connection method between them is directly related to the efficiency and safety of power transmission.

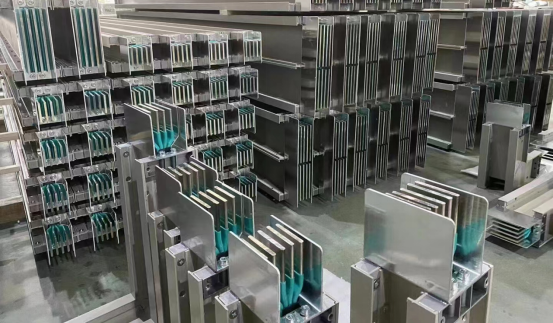

母线槽作为一种高效的电力传输设备,能够将电能从电源处输送到各个用电设备。而配电柜则负责对电能进行分配、控制和保护,确保电力系统的稳定运行。那么,母线槽和配电柜是如何连接的呢?As an efficient power transmission equipment, the bus duct can transport electrical energy from the power source to various electrical equipment. The power distribution cabinet is responsible for distributing, controlling, and protecting electrical energy to ensure the stable operation of the power system. So, how are bus ducts and power distribution cabinets connected?
首先,常见的连接方式之一是通过插接箱进行连接。插接箱安装在母线槽上,通过电缆与配电柜的进线开关相连。这种连接方式具有安装方便、灵活性高的特点。在安装过程中,只需将插接箱插入母线槽的相应位置,然后将电缆连接到配电柜即可。同时,插接箱还可以根据实际需求进行移动和调整,方便进行电力分配的调整。First, one of the common connection methods is through a plug-in box. The plug-in box is installed on the bus duct and connected to the incoming switch of the power distribution cabinet through a cable. This connection method has the characteristics of convenient installation and high flexibility. During the installation process, only need to insert the plug-in box into the corresponding position of the bus duct, and then connect the cable to the power distribution cabinet. At the same time, the plug-in box can also be moved and adjusted according to actual needs to facilitate the adjustment of power distribution.

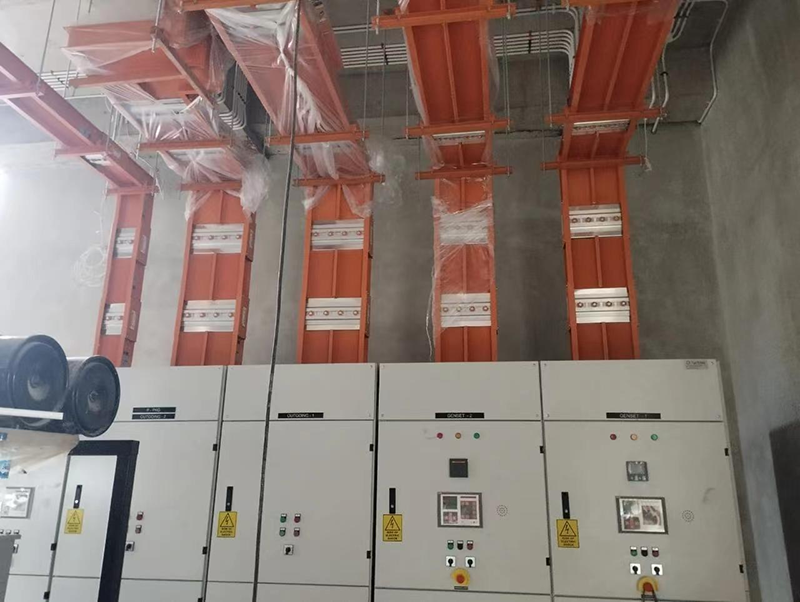

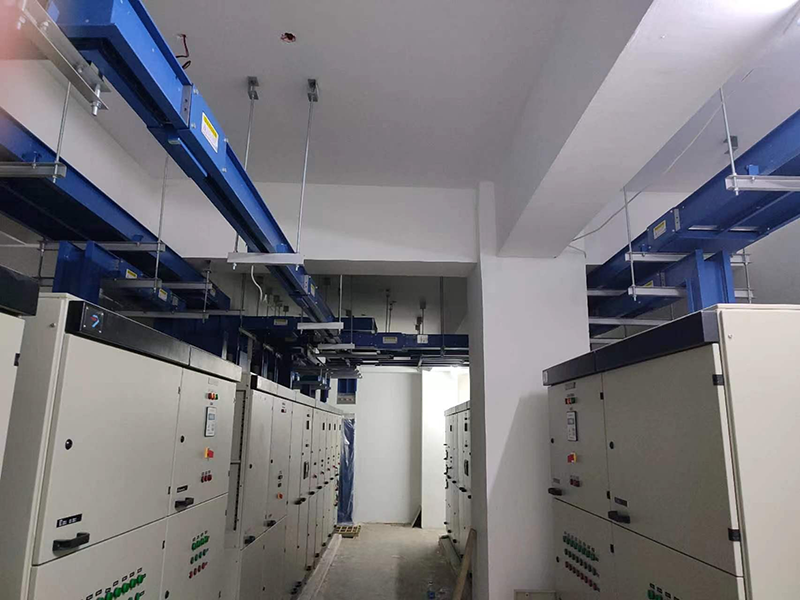

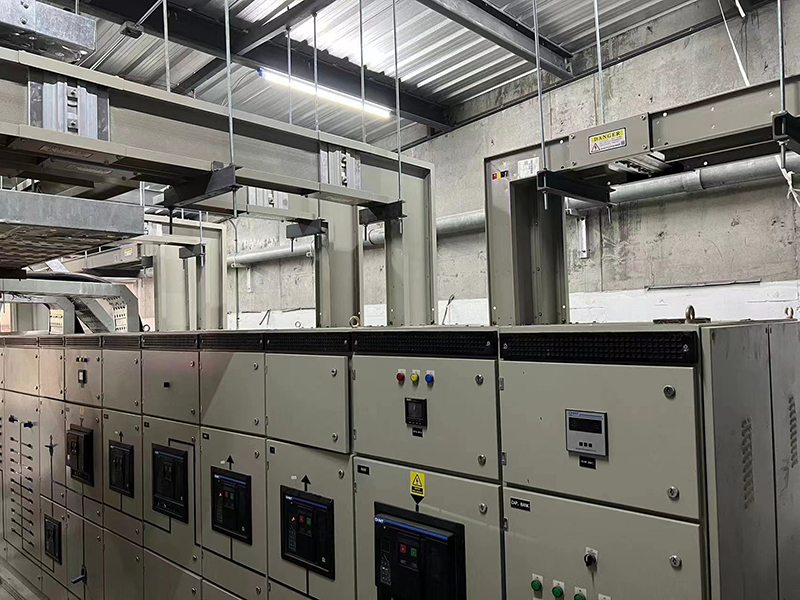

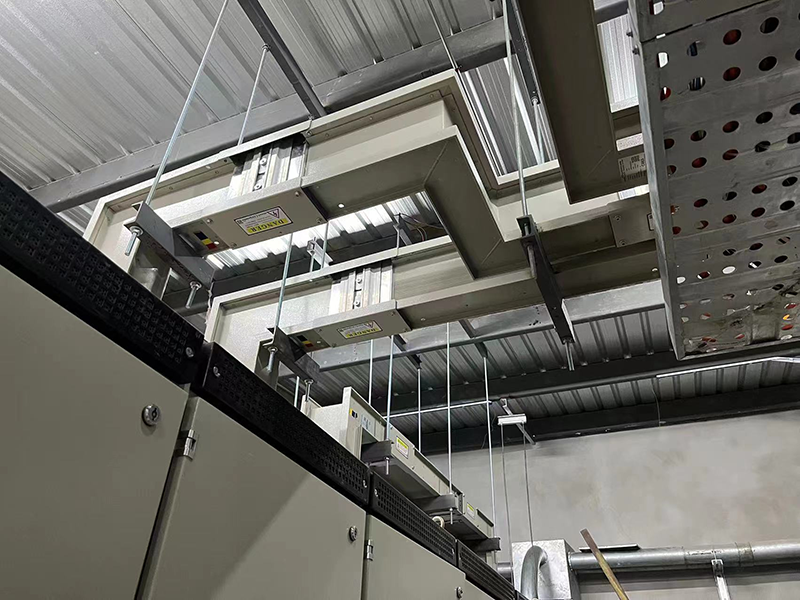

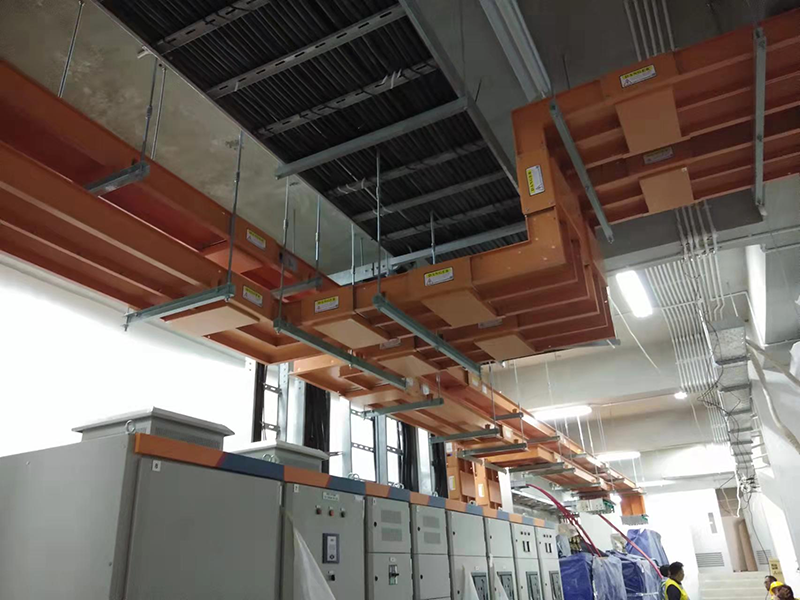

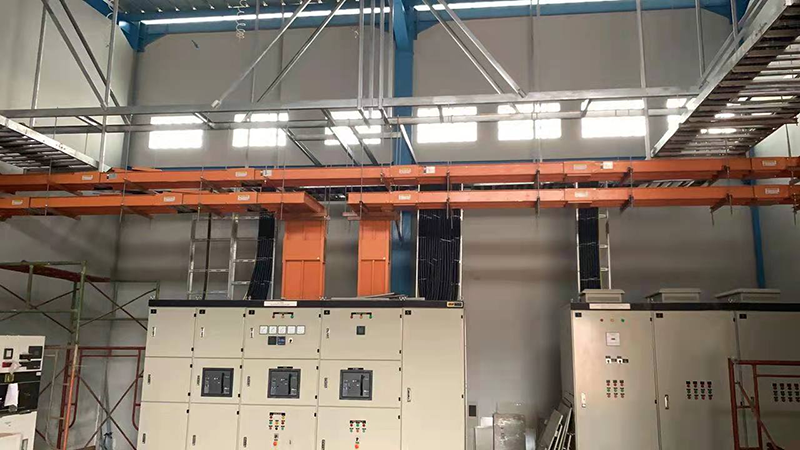

其次,直接连接也是一种常用的方式。在配电柜的顶部或底部设置进线口,将母线槽的连接端头直接与配电柜的进线口进行对接。这种连接方式简单直接,能够减少中间环节,降低电能损耗。但是,直接连接对安装精度要求较高,需要确保母线槽和配电柜的连接位置准确无误,以保证良好的电气接触。Second, direct connection is also a commonly used method. An incoming line port is set at the top or bottom of the power distribution cabinet, and the connection end of the bus duct is directly docked with the incoming line port of the power distribution cabinet. This connection method is simple and direct, which can reduce intermediate links and reduce power loss. However, direct connection requires high installation accuracy. It is necessary to ensure that the connection position of the bus duct and the power distribution cabinet is accurate to ensure good electrical contact.
在连接过程中,还需要注意以下几点:During the connection process, the following points need to be noted:
一是确保连接的牢固性。无论是插接箱连接还是直接连接,都需要保证连接部位紧密可靠,防止松动和接触不良。可以采用螺栓紧固、焊接等方式,确保连接的稳定性。First, ensure the firmness of the connection. Whether it is connected by a plug-in box or directly connected, it is necessary to ensure that the connection part is tightly and reliably connected to prevent loosening and poor contact. Methods such as bolt fastening and welding can be used to ensure the stability of the connection.
二是做好电气绝缘处理。母线槽和配电柜之间的连接部位需要进行良好的电气绝缘处理,以防止漏电和短路事故的发生。可以使用绝缘套管、绝缘垫片等材料,提高连接部位的绝缘性能。Second, do a good job in electrical insulation treatment. The connection part between the bus duct and the power distribution cabinet needs to be subjected to good electrical insulation treatment to prevent the occurrence of leakage and short circuit accidents. Materials such as insulating sleeves and insulating gaskets can be used to improve the insulation performance of the connection part.
三是进行严格的电气测试。在连接完成后,需要进行严格的电气测试,包括绝缘电阻测试、耐压测试等,确保连接后的电力系统符合安全标准。Third, conduct strict electrical tests. After the connection is completed, strict electrical tests need to be carried out, including insulation resistance tests and withstand voltage tests, to ensure that the connected power system meets safety standards.
总之,母线槽和配电柜的连接是电力传输的关键环节。通过合理选择连接方式,并严格按照安装要求进行操作,可以确保电力系统的高效、稳定运行,为人们的生产和生活提供可靠的电力保障。In short, the connection between bus ducts and power distribution cabinets is a key link in power transmission. By reasonably choosing the connection method and strictly operating in accordance with the installation requirements, the efficient and stable operation of the power system can be ensured and reliable power guarantee can be provided for people's production and life.
