在现代电力系统中，母线槽作为电力传输的关键设备，其稳定运行至关重要。然而，母线槽在工作时会产生热量，若散热与温升控制不当，会严重影响电力系统的可靠性和安全性。因此，深入了解并有效控制母线槽的散热与温升具有重要意义。
In modern power systems,Busway, as key equipment for power transmission, their stable operation is of utmost importance. However,Busway generate heat during operation. If heat dissipation and temperature rise are not properly controlled, it will seriously affect the reliability and safety of the power system. Therefore, it is of great significance to deeply understand and effectively control the heat dissipation and temperature rise ofBusway.

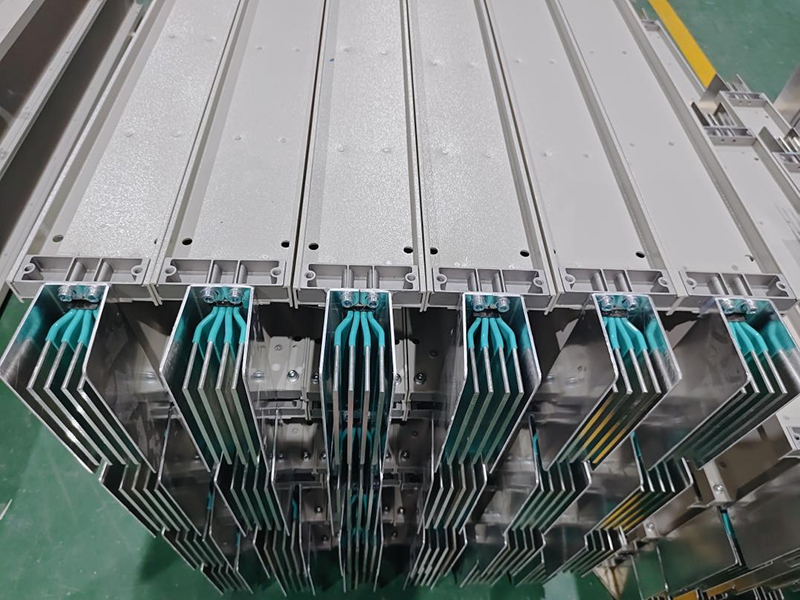

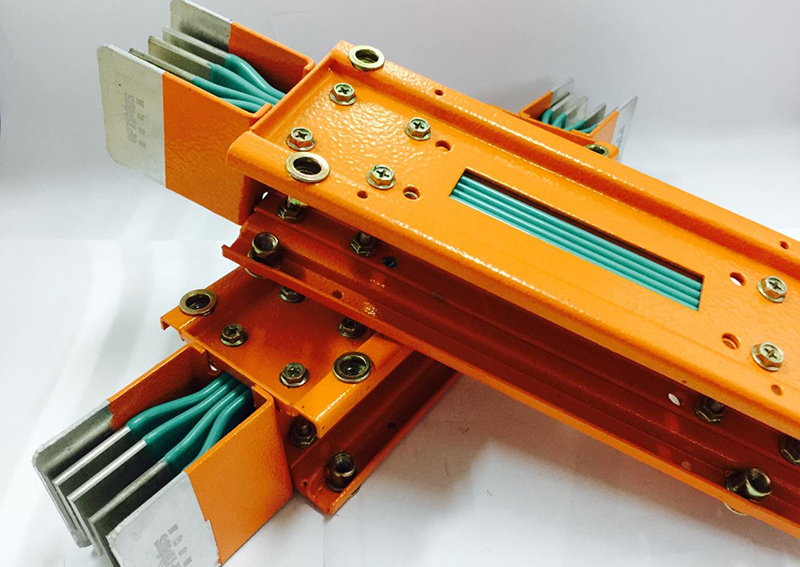

母线槽主要通过热传导、热对流和热辐射三种方式散热。热传导是热量在导体、绝缘材料和外壳等固体物质间传递。比如在密集型母线槽里，多根紧密压在一起的导电排与外壳接触良好，热量能高效地传导至外壳，进而散发出去。热对流依靠空气或液体的流动来转移热量。热辐射则是母线槽以电磁波形式向周围空间辐射热量，如在封闭母线外表面喷涂浅灰色油漆可减少对可见光的吸收，内表面喷涂黑色油漆可加强内部热量对外壳的辐射。
Busway mainly dissipate heat through three ways: heat conduction, heat convection, and heat radiation. Heat conduction is the transfer of heat among solid substances such as conductors, insulating materials, and enclosures. For example, in a compact Busway, multiple conductive bars tightly pressed together have good contact with the enclosure, and heat can be efficiently conducted to the enclosure and then dissipated. Heat convection relies on the flow of air or liquid to transfer heat. Heat radiation is the process in whichBusway radiate heat to the surrounding space in the form of electromagnetic waves. For instance, spraying light gray paint on the outer surface of a closedBusway can reduce the absorption of visible light, and spraying black paint on the inner surface can enhance the radiation of internal heat to the enclosure.
母线槽的温升是运行温度与环境温度的差值。运行时，由于导体电阻的存在，会产生焦耳热使温度升高。过高的温升危害极大，一方面会加速绝缘材料老化，降低绝缘性能，增加漏电和短路风险。另一方面，温升过高会增大导体电阻率，增加电能损耗，降低电力传输效率，还会影响周围设备正常运行，缩短其使用寿命。
The temperature rise of a busway is the difference between the operating temperature and the ambient temperature. During operation, due to the existence of conductor resistance, Joule heat is generated, causing the temperature to rise. Excessive temperature rise is extremely harmful. On the one hand, it will accelerate the aging of insulating materials, reduce insulation performance, and increase the risks of electric leakage and short - circuits. On the other hand, too high a temperature rise will increase the conductor resistivity, increase power consumption, reduce power transmission efficiency, affect the normal operation of surrounding equipment, and shorten their service life.
导体材料的电阻率对母线槽发热影响显著，铜因其电阻率低成为常用导体材料，含铜量越高，导电性能越好，电阻越小，发热越少。导体截面积也与温升紧密相关，相同条件下，截面积越大，电流密度越小，发热越低；反之，若截面积过小，电流密度过大，温升会急剧升高。
The resistivity of the conductor material has a significant impact on the heating ofBusway. Copper, with its low resistivity, has become a commonly used conductor material. The higher the copper content, the better the electrical conductivity, the lower the resistance, and the less heat generated. The cross - sectional area of the conductor is also closely related to the temperature rise. Under the same conditions, the larger the cross - sectional area, the smaller the current density, and the lower the heat generation. Conversely, if the cross - sectional area is too small, the current density will be too large, and the temperature rise will increase sharply.

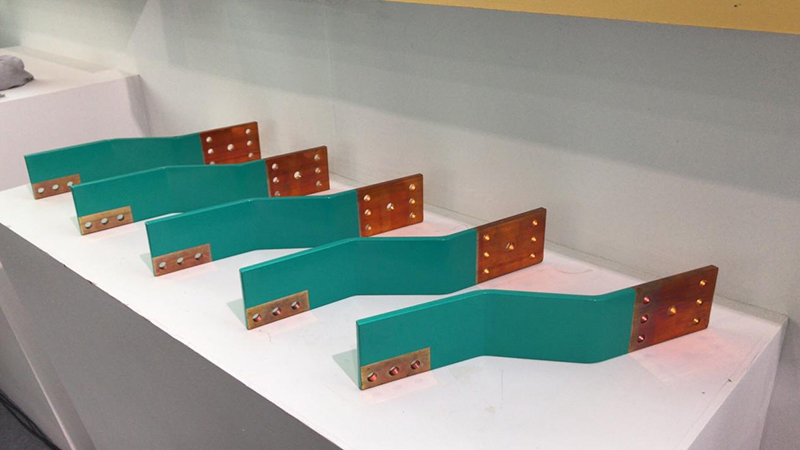

绝缘材料需兼具良好绝缘性与一定导热性。传统PVC 套管绝缘材料导热系数低，不利于散热；新型的环氧树脂流化等绝缘材料，在保障绝缘性能的同时，导热性更好，能有效传递导体热量，降低温升。绝缘结构设计同样重要，如绝缘层厚度、与导体的贴合程度等，都会影响热量传导和散发。
Insulating materials need to have both good insulation properties and certain thermal conductivity. Traditional PVC sleeve insulating materials have a low thermal conductivity, which is not conducive to heat dissipation. New insulating materials such as epoxy resin fluidization, while ensuring insulation performance, have better thermal conductivity and can effectively transfer the heat of the conductor and reduce the temperature rise. The design of the insulation structure is also important. Factors such as the thickness of the insulation layer and the degree of fit with the conductor will affect heat conduction and dissipation.

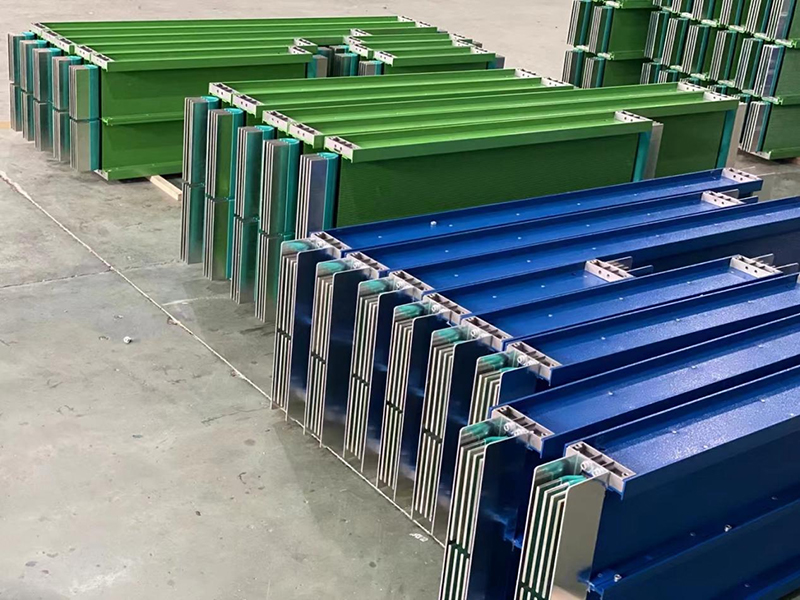

母线槽外壳不仅起保护作用，对散热也至关重要。采用铝合金等导热性能好的材料制作外壳，能快速传导内部热量，提高散热效率。
The enclosure of the busway not only plays a protective role but is also crucial for heat dissipation. Using materials with good thermal conductivity such as aluminum alloy to make the enclosure can quickly conduct the internal heat and improve the heat dissipation efficiency.

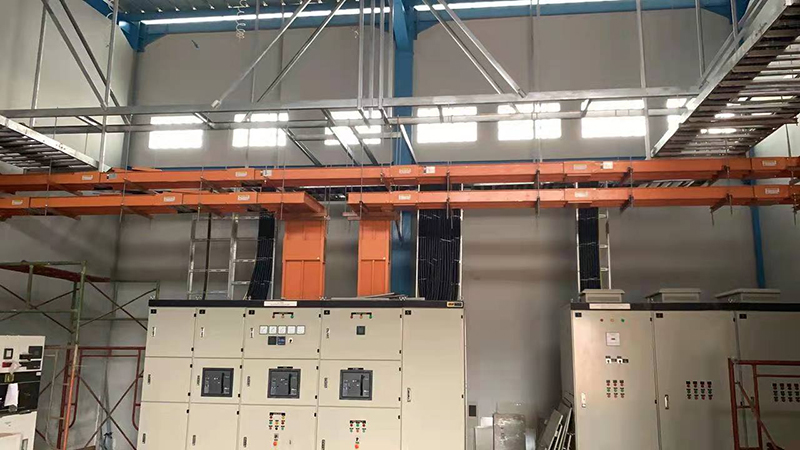

母线槽的散热与温升控制是保障电力系统安全稳定运行的关键环节。通过深入了解散热与温升原理及影响因素，采取优化设计、安装与布局以及采用监控与保护措施等一系列有效方法和技术，可有效降低母线槽温升，提高散热效率，确保其在各种工况下可靠运行。
The control of heat dissipation and temperature rise ofBusway is a key link in ensuring the safe and stable operation of power systems. By deeply understanding the principles of heat dissipation and temperature rise and their influencing factors, and adopting a series of effective methods and technologies such as optimized design, installation and layout, as well as the use of monitoring and protection measures, the temperature rise ofBusway can be effectively reduced, the heat dissipation efficiency can be improved, and its reliable operation under various working conditions can be ensured.
